Quartz Glass: The Invisible Backbone of Modern Technology

Quartz glass, a high-purity form of silicon dioxide (SiO₂), is a material of extraordinary versatility, prized for its unique combination of thermal, optical, and chemical properties. From semiconductor manufacturing to healthcare, its derivatives—including quartz tubes, plates, rods, crucibles, instruments, ingots, and specialized products like quartz crystal singing devices, infrared heating lamp tubes, and ultraviolet germicidal lamp tubes—form the backbone of industries that demand precision, durability, and reliability. This article explores the science, applications, and innovations surrounding these quartz-based components.

1. Material Properties: Why Quartz Glass Reigns Supreme

Quartz glass distinguishes itself through:

Thermal Resilience: With a melting point of 1,650°C and a low coefficient of thermal expansion (0.55 × 10⁻⁶/K), it resists thermal shock even under rapid temperature fluctuations.
Optical Transparency: Transmits ultraviolet (UV), visible, and infrared (IR) light, with >90% UV transmittance (185–2,500 nm).
Chemical Inertness: Impervious to most acids, solvents, and halogens except hydrofluoric acid (HF) and hot phosphoric acid.
Electrical Insulation: High dielectric strength (500–800 kV/cm) and low electrical conductivity.

These traits make it indispensable for extreme environments, from semiconductor fabs to outer space.

Quartz Tubes

2. Key Quartz Glass Products and Their Applications

A. Quartz Tubes

Quartz tubes are cylindrical structures used in high-temperature and corrosive settings:

Semiconductor Industry: Serve as reaction chambers in diffusion furnaces for doping silicon wafers with boron or phosphorus.
Lighting: Core components of infrared heating lamp tubes (e.g., industrial drying systems) and ultraviolet germicidal lamp tubes (water/air purification).
Chemical Processing: Transport aggressive media like chlorine gas or sulfuric acid.

B. Quartz Plates

Flat, polished panels with applications in:

Optics: Windows for UV lithography machines and laser systems.
Solar Energy: Protective covers for photovoltaic panels, enhancing UV light utilization.

C. Quartz Rods

Cylindrical solid bars utilized for:

Laboratory Tools: Stirrers in high-temperature molten salt experiments.
Fiber Optics: Preforms drawn into low-loss optical fibers.

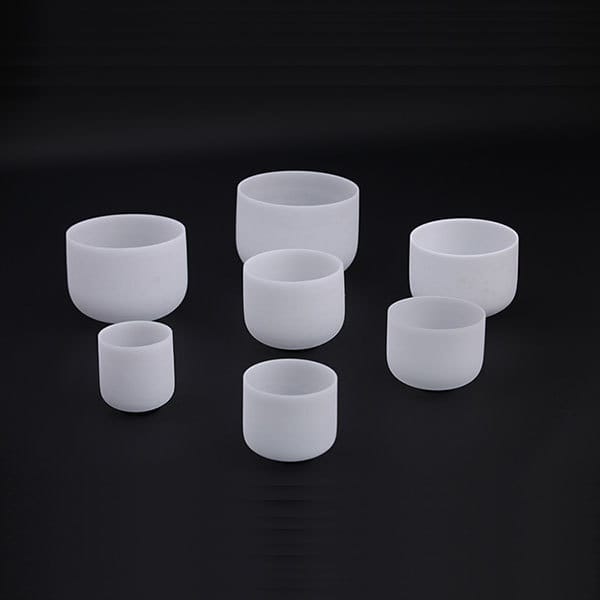

D. Quartz Crucibles

Containers designed for melting and crystallizing materials:

Solar Silicon Production: Hold molten polysilicon at 1,400°C to grow monocrystalline ingots.
Pharmaceuticals: Synthesize high-purity active ingredients without contamination.

E. Quartz Instruments

Custom-designed apparatus such as:

Spectrophotometer Cells: Enable UV-Vis spectroscopy in chemical analysis.
Thermocouple Protection Sheaths: Shield sensors in molten metal processing.

Quartz Ingots

F. Quartz Ingots

Raw material blocks for machining precision components:

Optical Lenses: Ground into lenses for deep-UV lithography systems.
Semiconductor Wafers: Sliced into substrates for MEMS (micro-electromechanical systems).

G. Quartz Crystal Singing Products

Artistic and functional devices leveraging quartz’s piezoelectric properties:

Resonators: Frequency control in watches, radios, and IoT devices.
Sonic Cleaners: Generate ultrasonic waves for industrial part degreasing.

H. Infrared Heating Lamp Tubes

Quartz tubes optimized for IR radiation:

Food Industry: Dry and sterilize packaging materials.
Automotive: Cure coatings on car bodies.

I. Ultraviolet Germicidal Lamp Tubes

Engineered to emit UV-C (254 nm) light:

Healthcare: Disinfect surgical instruments and hospital air.
Wastewater Treatment: Eliminate pathogens without chemicals.

3. Manufacturing Processes: From Sand to Sophistication

Quartz glass products are crafted through meticulous steps:

Raw Material Purification: Natural quartz or synthetic silica is refined to >99.995% purity.
Melting:
- Electric Arc Furnaces: Produce opaque quartz for IR applications.
- Flame Fusion: Creates transparent grades using hydrogen-oxygen torches.
- Chemical Vapor Deposition (CVD): Builds ultra-pure layers for semiconductor ingots.
Forming:
- Extrusion: Molten quartz is pressed into tubes or rods.
- Molding: Crucibles and plates are shaped using graphite molds.
Annealing: Slow cooling in kilns to relieve internal stresses.
Machining: Diamond tools cut and polish components to micrometer precision.

4. Comparative Advantages Over Competing Materials

Application	Quartz Glass Solution	Alternative Material	Quartz Advantage
High-Temperature Furnace	Quartz Tube Liner	Alumina Ceramic	Higher thermal shock resistance
UV Sterilization	Ultraviolet Germicidal Lamp Tube	Borosilicate Glass	Superior UV transparency
Semiconductor	Quartz Crucible	Graphite	Zero contamination, higher purity
Aerospace Sensors	Quartz Ingot-Machined Window	Sapphire	Lower cost, comparable IR performance

5. Innovations Driving the Quartz Glass Industry

Nano-Structured Quartz: Surface treatments enhance scratch resistance for smartphone camera lenses.
Recyclable Quartz: Laser purification reclaims used crucibles and tubes, reducing waste.
Hybrid Composites: Quartz-carbon fiber laminates for lightweight aerospace components.
AI-Optimized Manufacturing: Machine learning predicts defects in CVD-grown ingots.

6. Market Trends and Future Prospects

The global quartz glass market, valued at $7.2 billion in 2023, is projected to grow at 6.8% CAGR, fueled by:

Semiconductor Boom: Demand for EUV lithography tubes in 3nm chip production.
Green Energy: Solar crucibles and hydrogen electrolyzer components.
Healthcare Expansion: Post-pandemic focus on UV-C disinfection systems.

7. Challenges to Overcome

Cost Intensity: High energy consumption in synthetic silica production.
Brittleness: Ongoing R&D into toughened quartz coatings.
Supply Chain Risks: Geopolitical tensions affecting high-purity silica sources.

Conclusion

Quartz glass is far more than a niche material—it is an enabler of technological revolutions. From the quartz crystal singing products in your smartphone to the infrared heating lamp tubes sterilizing your food, its applications are both ubiquitous and invisible. As industries push the limits of temperature, purity, and precision, quartz glass will continue to evolve, cementing its role as a silent yet irreplaceable partner in human progress.
